Product Details
- Place of Origin: China
- Brand Name: Riotouch
- Model Number: S82
Dong Guan Riotouch Techonology Co., Ltd (Riotouch) was founded in 2009, covering an area of 2500 square meters. We are a high-tech enterprise of human-machine interaction technology, manufacturing interactive whiteboard, infrared touch screen, touch all in one monitor ,which have been widely used in education, business, military, Government and service industry.
- Place of Origin: China
- Brand Name: Riotouch
- Model Number: S82

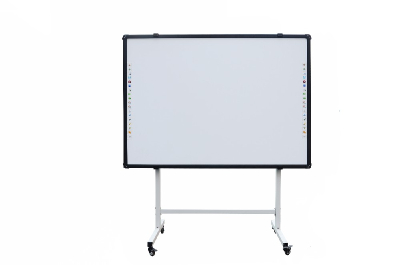

| Infrared interactive whiteboard | ||
| General | Model | S82 |
| Exteral frame material | Aluminum | |
| Ratio | 4:3 | |
| Touch Technology | Infrared | |
| Touch Points | 10 points touch | |
| Interface | USB2.0 or USB3.0 | |
| External size | 1688*1208mm | |
| Active area (mm) | 1610*1130mm | |
| Package size | 178*130*7mm | |
| Net weight | 26KG | |
| Gross weight | 29KG | |
| Performance | Resolution(Interpolation) | 32767*32767 |
| Linearity Error | 1.5mm | |
| Responsible time | 8ms | |
| Response Speed | <20ms | |
| Input Method | Finger, teaching point, or opaque objects | |
| Touch Times | Unlimited | |
| Touch Activation Force | No minimum touch activation force is required with IR touch technology | |
| Minimum Touch Object | 5mm | |
| Environmental | Temperature | Operating: -20°C ~ 70°C |
| Storage: -40°C ~ 85°C | ||
| Relative Humidity | Operating: 90%(noncondensing at max 40°C) | |
| Storage: 90%(noncondensing at max 40°C) | ||
| Altitude | Up to 7,000m | |
| Life Time | At least 7-year | |
| Electrical | Operation Voltage | Typical DC 5V, 4.75V to 5.25V |
| Power Supply | USB, power ripple max.200mV rms | |
| Power | <2W, operating current<200mA | |
| Agency Approvals | CE, FCC Class B,RoHS | |
