- Place of Origin: China
- Brand Name: Riotouch
- Model Number: H82
Dong Guan Riotouch Techonology Co., Ltd (Riotouch) was founded in 2009, covering an area of 2500 square meters. We are a high-tech enterprise of human-machine interaction technology, manufacturing interactive whiteboard, infrared touch screen, touch all in one monitor ,which have been widely used in education, business, military, Government and service industry.
- Place of Origin: China
- Brand Name: Riotouch
- Model Number: H82

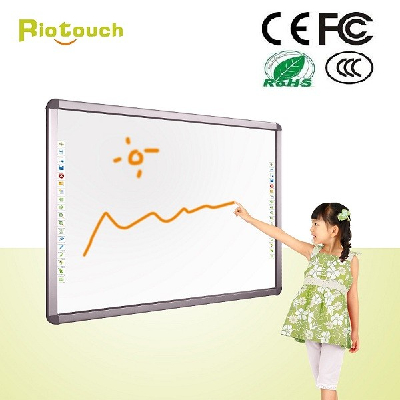

Infrared interactive whiteboard | ||
General | Model | H82 |
Exteral frame material | Aluminum | |
Ratio | 4:3 | |
Touch Technology | Infrared | |
Touch Points | 10 points touch | |
Interface | USB2.0 or USB3.0 | |
External size | 1760*1280mm | |
Active area (mm) | 1627*1147mm | |
Package size | 186*7*138cm | |
Net weight | 26KG | |
Gross weight | 29KG | |
Performance | Resolution(Interpolation) | 32767*32767 |
Linearity Error | 1.5mm | |
Responsible time | 8ms | |
Response Speed | <20ms | |
Input Method | Finger, teaching point, or opaque objects | |
Touch Times | Unlimited | |
Touch Activation Force | No minimum touch activation force is required with IR touch technology | |
Minimum Touch Object | 5mm | |
Environmental | Temperature | Operating: -20°C ~ 70°C |
Storage: -40°C ~ 85°C | ||
Relative Humidity | Operating: 90%(noncondensing at max 40°C) | |
Storage: 90%(noncondensing at max 40°C) | ||
Altitude | Up to 7,000m | |
Life Time | At least 7-year | |
Electrical | Operation Voltage | Typical DC 5V, 4.75V to 5.25V |
Power Supply | USB, power ripple max.200mV rms | |
Power | <2W, operating current<200mA | |
Agency Approvals | CE, FCC Class B,RoHS |
